Full kit buildings ready to go with everything you need to get the job done without any hassle

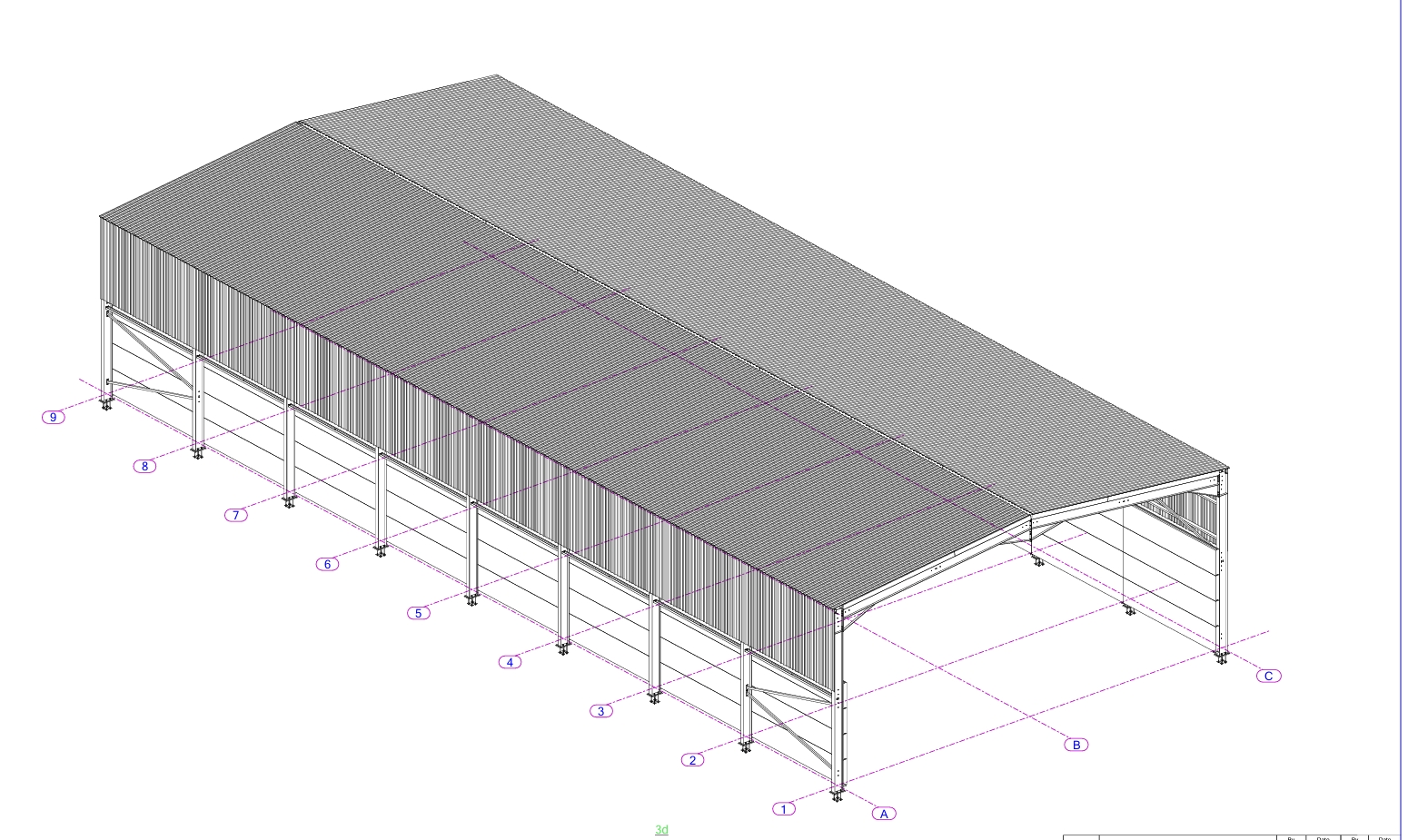

Designed for a silo clamp, Natural grey Fibre Cement roof cladding with 1-5 ratio closed and vented ridges and 2no 2.9m skylights per 15ft bay,
Sides cladded with spaced treated yorkshire boards down to
+3550mm from finish floor level on 2no sides and 1no gable,
front gable down to eaves level.
All complete with fittings and 170mm hunters rainwater goods.
Rafters: - 18no 203x133x25kg -
Columns: - 18no 305x165x40kg -
Gable Legs: - 2no 305x165x40kg -
Eaves/Rafter Ties: - 28no 80mm SHS -
Purlins: - Tanalised 7x3 C16 Timber -
Column Restraint Ties: - 19no 152x89x16kg
Finish: - Painted Anthracite Grey -

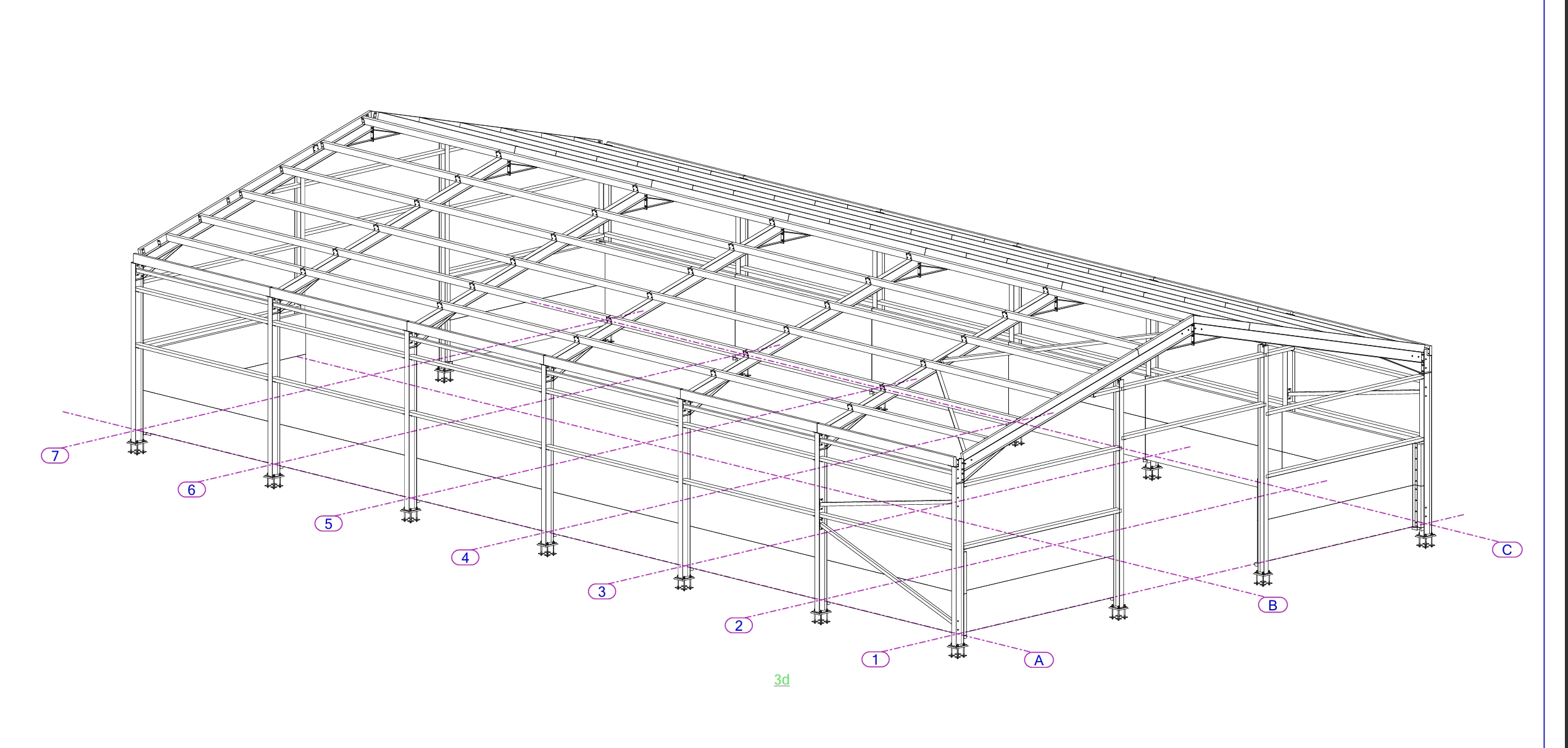

Designed to be a livestock building, Natural grey fiber cement roof cladding with closed ridges and 2no 2.9m skylights per 15ft bay,
Side cladded with treated 150mm x 25mm touching yorkshire board down to +1850mm from finish floor level on all sides with a 15ft wide x 12ft high door opening in each gable.
All complete with fixings and 170mm hunters rainwater goods.
Rafters: - 14no 254x146x31kg -
Columns: - 14no 254x146x31kg -
Gable Legs: - 4no 203x133x25 -
Eaves/Rafter Ties: - 22no 80mm SHS
Purlins: - Tanalised 7x3 C16 Timber -
Finish: - Painted Anthracite Grey -
